STEP 9: Complete First Row Modules

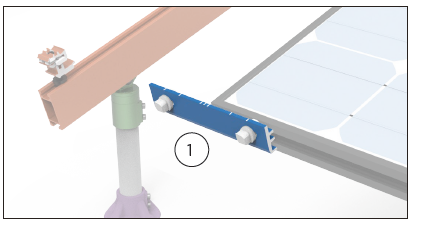

  1. Install the Interlock.
    Install an Interlock into the Zep Groove of an installed module. Fully secure the half of the Interlock that is inserted into the Zep Groove.

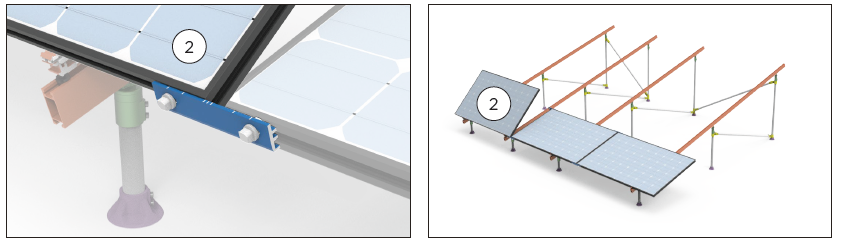

  2. Install the module.
    With the help of a second installer, drop in a module onto the Tongue side of the Interlock and Cam Foot. Push while rocking the module down to ensure proper seating, then secure the remaining Interlock Zep.

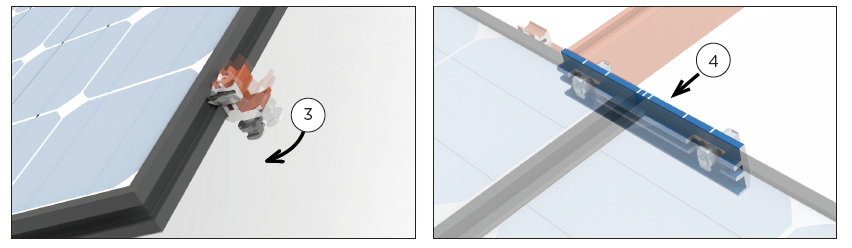

  3. Engage the rear Cam Feet.

    Before completely lowering the module, engage Cam Feet at the back of the module where they will meet their respective Rails. Fully rock down the module and secure the Cam Foot with the Offset Flat Tool.

  4. Install the rear Interlock.
    Install an Interlock onto the back of the two modules.
  5. Repeat until the row is complete.
