Supported System Configurations

Tesla Powershare Home Backup systems can be installed with the following equipment configurations.

Feature Required Equipment Feature Availability
Powershare Powershare Gateway, Universal Wall Connector Available now
Powershare with Backup Switch 1 Powershare Gateway, Backup Switch, Universal Wall Connector Available now
Powershare with up to 11.5 kW Solar 2 Powershare Gateway, Universal Wall Connector, Backup Switch (optional) Available now, solar metering with Tesla Remote Energy Meter coming later in 2025
Powershare with Powerwall Powerwall backup system (Powerwall 2, Powerwall+, or Powerwall 3), Wall Connector (Gen 3 or Universal)
Informational PurposesAn informational icon, calling your attention
Note
A Powerwall system with Wall Connector does not require any additional equipment or installation steps; Powershare functionality will be enabled with a software update. Do not install Powershare Gateway with a Powerwall system. Do not attempt to run communication wiring between the Wall Connector and the Powerwall or Backup Gateway.
Can be installed now, Powershare feature available later in 2025

1 Backup Switch with Tesla P/N 1624171-xx-L or greater is required for Powershare home backup installations.

2 If the system includes a UL 1741-listed solar system and there is capacity in the backup panel, ensure the solar system is included in the backup circuit to allow Cybertruck to recharge during an outage. A maximum of 11.5 kW AC of solar can be installed in the backup circuit. This limit protects the Powershare system and Cybertruck from excessive PV power during a grid outage.
Informational PurposesAn informational icon, calling your attention
Note
The solar system overcurrent protection device (OCPD) size must be less than or equal to the Universal Wall Connector breaker size; for instance, when Universal Wall Connector is connected to a 60 A breaker, a solar system with up to a 60 A OCPD can be included in the backup circuit.
Informational PurposesAn informational icon, calling your attention
Note
For Powershare systems with third party backup (generators or third party batteries), see the Third Party Backup with Powershare Systems application note for guidance.
Informational PurposesAn informational icon, calling your attention
Note
The Wall Connector Dynamic Power Management and/or Group Power Management features are not available when installing Universal Wall Connector for Powershare.

Whole Home Backup Equipment Configurations

Informational PurposesAn informational icon, calling your attention
Note
The diagrams below are not a complete list of allowable configurations, but represent the majority of installations.
Informational PurposesAn informational icon, calling your attention
Note
See Whole-Home Backup Wiring Diagrams for detailed wiring diagrams.

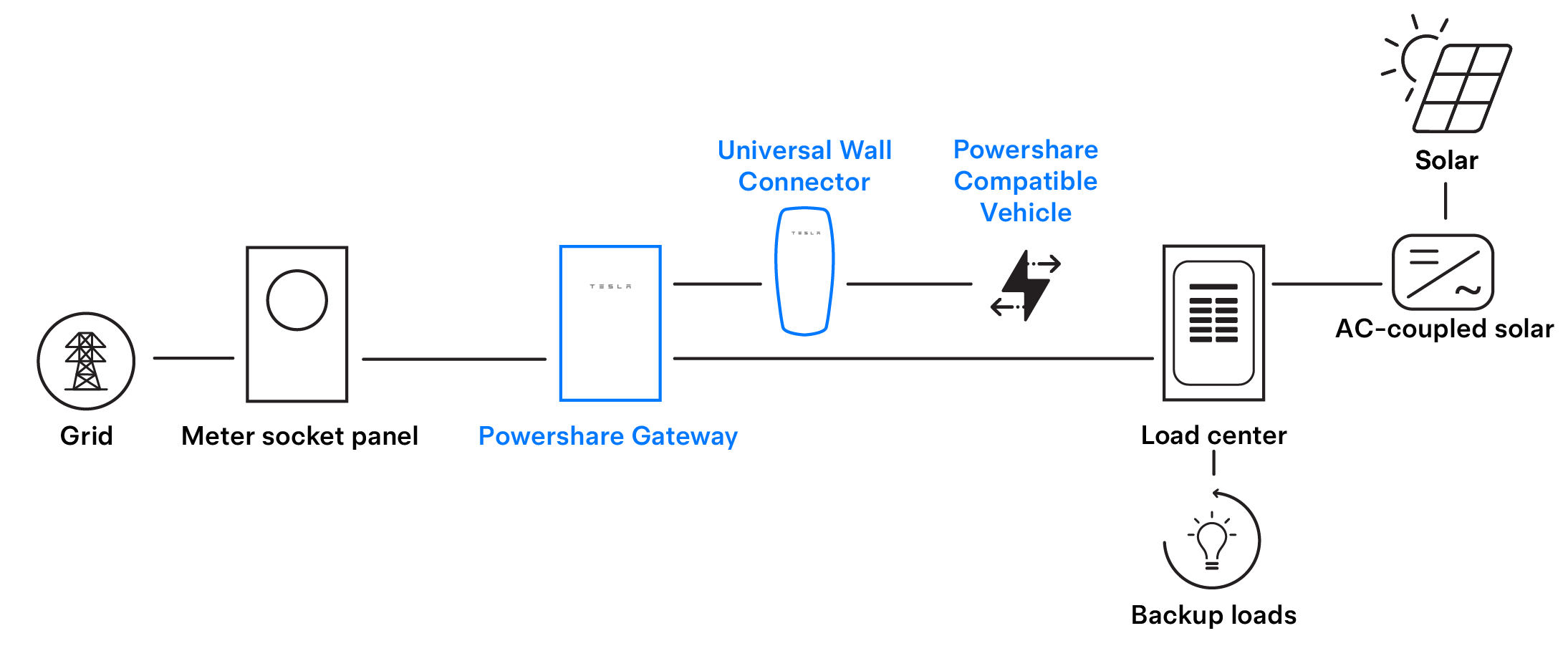

Whole Home Backup with Standalone Meter
Informational PurposesAn informational icon, calling your attention
Note
In this configuration, the service disconnect and the Wall Connector breaker are installed in the Powershare Gateway.
Whole Home Backup with Meter Load Center, with Backup Switch
Whole Home Backup with Meter Load Center, with relocated loads

Partial Home Backup Equipment Configurations

Informational PurposesAn informational icon, calling your attention
Note
See Partial-Home Backup Diagrams for detailed wiring diagrams.
Partial Home Backup with Detached Meter and Main Panel
Informational PurposesAn informational icon, calling your attention
Note
In this configuration, the Wall Connector breaker is on the Powershare Gateway internal panelboard.
Partial Home Backup with Meter Load Center
